Activated Carbon Adsorbents

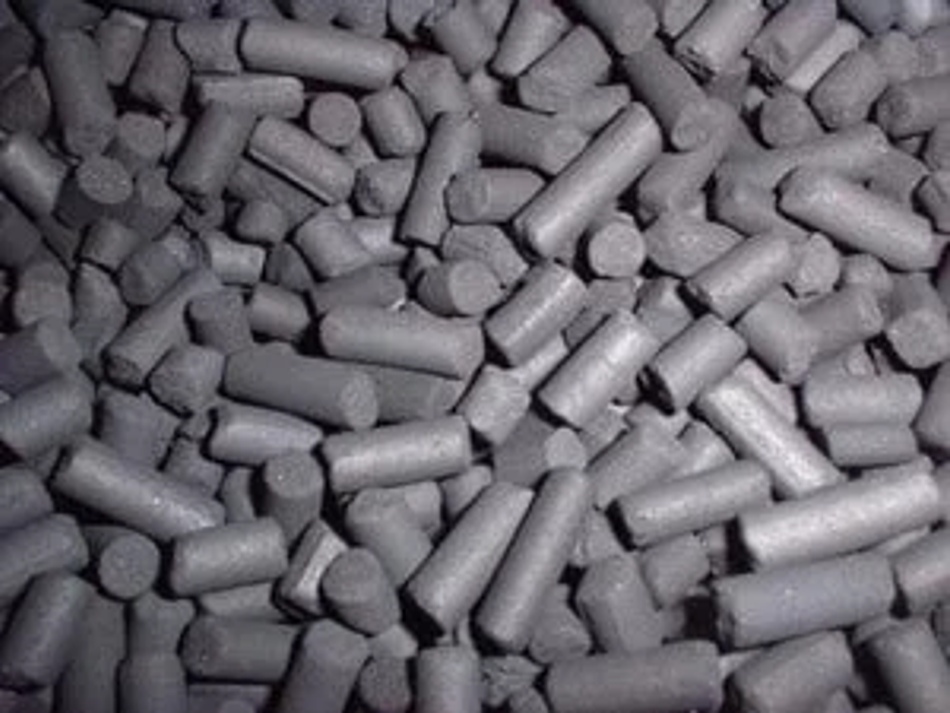

STM offer Jacobi Carbons wide range of performance activated carbon products to provide tailored purification solutions. Pressure drop, pore structure, form factor, enhanced adsorptive properties are balanced to best meet purification requirements. Jacobi offers the broadest line of activated carbons in the industry, with hundreds of standard products in granular, powdered, and extruded forms, made from diverse raw materials including coconut shell, various grades of coal, and wood.

Air

Protect health, meet emission standards, control foul odours, protect against corrosive gases.

Water

Remove organic contaminants, pesticide residues, colour and odour. De-chlorinate. Purify effluent water for reuse.

Process Fluids

Remove harmful contaminants to protect catalyst, protect against corrosion, maintain fluid performance, remove degradation products. Remove colour. Enhance finished product.

Process Gas & Vapour

Recover solvent vapours, remove mercury, remove H2S and organics.

Product Family Brands

Amine and Glycol Recovery

Activated carbon is widely applied in Glycol Dehydration treatment and has found its largest application in the removal of degradation products created within the amine treatment processes (Girdler Process) used to remove H2S and CO2. By treating a side stream of recirculating amine liquor, activated carbon can greatly prolong the service life of the amine. Similarly, the purification of glycol used in gas dehydration processes ensures optimum performance and reduces the risk of secondary contamination of the raffinate. PetroSorb™ products for Amine treatment and Glycol recovery include PetroSorb™1000 & 2000 series and re-agglomerated grades PetroSorb™ 620.

Condensate Treatment

Water use management is an increasingly critical component of refinery operations, particularly in arid regions. In the reuse of steam condensate oil and hydrocarbons must be removed upstream of ion exchange resins in boiler water recirculation systems. Jacobi’s PetroSorb™ HS series includes grades with low silica release, which reduces wash water requirements and ensures that the ion exchange columns function as intended in the removal of trace metals, and not silica, from the recirculating condensate.

Mercaptan Extraction and Fuel Sweetening

Activated carbon serves as a perfect substrate for impregnation with any oxidation catalyst used in the removal of mercaptans from high grade liquid fuels. Providing both exceptional product hardness, minimal fine formation in the treated fuel, and low volume density, Jacobi’s PetroSorb™ G-SWC80 meets all the requirements of this critical refinery process.

Gas Purification – Mercury Removal

Mercury and its reacted by-products in natural gas, petrochemical, and refinery feed streams can result in extreme corrosion of metallic components. Jacobi offers AddSorb™ VQ series of high activity, impregnated activated carbons manufactured by steam activation of coconut shell (granular) and anthracite coal (extruded). The chemical impregnations used offer exceptionally high loading capacity and high temperature stability for the most arduous operating conditions.

Gas Purification – Desulfurization Of Natural Gas

Sulphur is a common contaminant requiring removal from gas streams, whether it be for catalyst protection or the control of odorous emissions to the atmosphere. Jacobi’s AddSorb™ VA series and AddSorb™ Sulfox are suitable for sulphur removal in air or oxygen deficient atmospheres, with exceptionally high capacity and suitable for in-situ regeneration.

Gas Purification – Pressure Swing Adsorption

High purity gases are increasingly used in refinery operations. Remote extraction locations often dictate that gas generation occurs onsite. Activated carbon plays a critical role in the separation of oxygen, hydrogen and other critical gases from the air in pressure swing adsorption systems. Jacobi’s PetroSorb™ GXK and PetroSorb™ CS gas separation carbons are made from coconut shell and anthracite coal by steam activation processes, ensuring excellent cycle yields and high purity end product.

Air Emissions – VOC Control

In addition to regulations governing wastewater discharge, petroleum refineries often must comply with regulations on their air emissions, requiring control technologies for volatile organic compounds (VOCs). Activated carbon’s simplicity and reliability makes it ideal for air emission compliance. Jacobi supplies PetroSorb™ GXB (extruded coal based) and PetroSorb™ CS (granular coconut shell based) grades for VOC removal systems.

CO2 Purification

Surplus CO2 may be purified on or off site for a variety of end uses. Purification of CO2 uses activated carbon as polishing step to remove residual VOC's. Jacobi EcoSorb™ BXA and EcoSorb™ GXB series are utilised in this application.

Vapour Recovery Units

Displacement of hydrocarbon vapour during transfer from bulk tanks to transportation and delivery vehicles and ships may result in losses to atmosphere. To capture losses, the use of activated carbon in a regenerative vapour recovery unit (VRU) is commonly employed. Jacobi’s PetroSorb™ BX series possess the critical properties for use in VRU systems: high VOC adsorption capacity, ease of desorption, minimal heat of adsorption, and the ability to withstand frequent and repeated regeneration cycles.
